Revision as of 11:56, 10 September 2010


This is the Default mold for Auxhead

Source

The CSS source for Auxhead with Grid from GitHub


The CSS source for Auxhead with Listbox from GitHub


The CSS source for Auxhead with Tree from GitHub

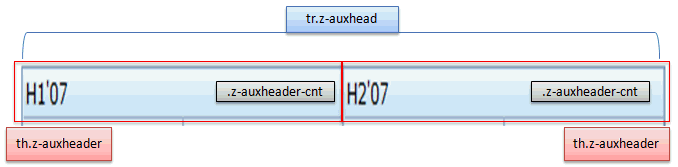

Structure

Auxhead1.gif Auxhead2.gif

Events

CSS\Action Normal (Open) Hover Click, Select, and Drag. Focus Focus and Hover Disable
Naming: .z-combo-item -over -seld -over-seld -disd
Supported: V ! ! !

Note: An exclamation mark(!) means that the action effect is done by CSS background , not CSS background-position

CSS Specification

Class Name Description Default Values
.z-combo -item.z-combobox-pp

.z-combo-item, .z-combobox-pp .z-combo-item a, .z-combobox-pp .z-combo-item a:visited

Font size font-size: ${fontSizeM};

font-weight: normal; color: black; text-decoration: none;

.z-combobox-pp .z-combo-item-text,

.z-combobox-pp .z-combo-item-img

Font size white-space: nowrap;

font-size: ${fontSizeS}; cursor: pointer;

.z-combobox-pp .z-combo-item-inner,

.z-combobox-pp .z-combo-item-cnt

Color and font size of Comboitem's description and content color: #888;

font-size: ${fontSizeXS}; padding-left: 6px;

div.z-grid-header tr.z-columns, div.z-grid-header tr.z-auxhead Background image background-color:#C3E7FB;

background-image:url(/Zk-1/zkau/web/zul/img/grid/column-bg.png); background-repeat:repeat-x;

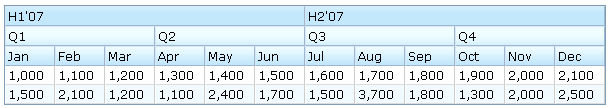

Example


<style>
	div.z-grid-header tr.aux1.z-auxhead {
		background-color: #F0FDFF;
		background-position: 0 8px;
	}
	div.z-grid-header tr.aux2.z-auxhead {
		background-position: 0 -10px;
	}
</style>
...
<auxhead sclass="aux1">
	<auxheader label="H1'07" colspan="6"/>
	<auxheader label="H2'07" colspan="6"/>
</auxhead>
<auxhead sclass="aux2">
	<auxheader label="Q1" colspan="3"/>
	<auxheader label="Q2" colspan="3"/>
	<auxheader label="Q3" colspan="3"/>
	<auxheader label="Q4" colspan="3"/>
</auxhead>
...



Last Update : 2010/09/10
