New Features of ZK 9.5.0"

From Documentation
Line 37: Line 37:

-->

-->

= Components =


== Custom Tree Line ==


Treerow contains explicit CSS class to show its position in a tree e.g. .z-treerow-child, .z-treerow-last-child, .z-tree-line-anchor, so that you can apply your custom CSS to add lines among tree rows, for example:


[[File: tree-line.jpg | center| 250px| caption]]


Please check [https://github.com/zkoss/zkbooks/tree/master/componentreference the example project].


== Radio/Checkbox Status CSS Class ==

Radio/Checkbox both have CSS class applied on them according to their status. Therefore, you can apply custom style easily.

<source lang='css'>

.z-checkbox-on{...}

.z-checkbox-off{...}


.z-radio-on{...}

.z-radio-off{...}

</source>


<!--

[ZK-4425] - Allow to drag button when MouseDown on any position in Rangeslider/Multislider

[ZK-4544] - Radio/Checkbox provide a status class name for more easier theme customization

[ZK-4497] - searchbox: improve clearing selection, key shortcut / clear icon

[ZK-4551] - Support ref override for position of Popup/Tooltip/Context

[ZK-4494] - Tree's DOM structure shall provide enough information to decorate lines with CSS

-->



= Data Binding Syntax Sugar and Simplified Usage=

= Data Binding Syntax Sugar and Simplified Usage=
Line 166: Line 140:

[ZK-3628] - support a way to create a customized theme based on built-in themes

[ZK-3628] - support a way to create a customized theme based on built-in themes

-->

-->
 +
 +
= Components =
 +
 +
== Custom Tree Line ==
 +
 +
Treerow contains explicit CSS class to show its position in a tree e.g. .z-treerow-child, .z-treerow-last-child, .z-tree-line-anchor, so that you can apply your custom CSS to add lines among tree rows, for example:
 +
 +
[[File: tree-line.jpg | center| 250px| caption]]
 +
 +
Please check [https://github.com/zkoss/zkbooks/tree/master/componentreference the example project].
 +
 +
== Radio/Checkbox Status CSS Class ==
 +
Radio/Checkbox both have CSS class applied on them according to their status. Therefore, you can apply custom style easily.
 +
<source lang='css'>
 +
.z-checkbox-on{...}
 +
.z-checkbox-off{...}
 +
 +
.z-radio-on{...}
 +
.z-radio-off{...}
 +
</source>
 +
 +
<!--
 +
[ZK-4425] - Allow to drag button when MouseDown on any position in Rangeslider/Multislider
 +
[ZK-4544] - Radio/Checkbox provide a status class name for more easier theme customization
 +
[ZK-4497] - searchbox: improve clearing selection, key shortcut / clear icon
 +
[ZK-4551] - Support ref override for position of Popup/Tooltip/Context
 +
[ZK-4494] - Tree's DOM structure shall provide enough information to decorate lines with CSS
 +
-->
 +


= Backward Compatibility: ZK 7 Form Binding =

= Backward Compatibility: ZK 7 Form Binding =

Revision as of 10:29, 23 September 2020

New Features of ZK 9.5.0

Author
Hawk Chen, Engineer, Potix Corporation
Date
Sep. 22, 2020
Version
ZK 9.5.0


Introduction

In ZK 9.5, we focus on User Experience and Developer Experience. Therefore, we pay lots of effort to refine components for WCAG. Besides, we provide data-binding syntax sugar to save some typing effort and make components and themes easier to customize. Please enjoy it!

Download







Highlighted features.png

Web Accessibility Support

We are excited to announce a preview version of the za11y (ZK Accessibility) package for WCAG 2 compliance. Various enhancements have been made on ZK components for keyboard interaction (focus, navigation order, …) and screen reader support (aria-labels, roles, …). In addition, accessibility-ready themes are made available for providing sufficient color contrast and focus style.

Check out the ZA11Y Demo Project.

Learn more about ZK Accessibility and WCAG themes.



Data Binding Syntax Sugar and Simplified Usage

ZK now provides a simplified syntax with a built-in convention. You can type fewer characters when applying data binding and speed up your development.


Init ViewModel Shortcut

You can apply a ViewModel on a component in a shorter way. Then, ZK assigns a default ViewModel ID as vm without explicitly specified and no need to specify "init".

<!-- original syntax -->
<div viewModel="@id('vm') @init('MyViewModel')" >

<!-- shortcut syntax -->
<div viewModel="@('MyViewModel')">

Implicit Init Binding

Now you can apply an init property binding without specifying "init".

<!-- original syntax -->
<label value="@init(vm.greeting)"/>

<!-- shortcut syntax -->
<label value="@(vm.greeting)"/>

For other bindings e.g. @load, @bind, you have to specify it explicitly.


Implicit Command Binding

Now ZK will create a command binding at an event attribute (starting with on) by default without specify command explicitly.

<!-- original syntax -->
<button onClick="@command('hello')"/>

<!-- shortcut syntax -->
<button onClick="@('hello')"/>


Besides, no need to apply @Command on a command method.

    // original usage
    @Commnad
    @NotifyChange("name")
    public void hello(){
        ...
    }

    // simplified usage
    @NotifyChange("name")
    public void hello(){
        ...
    }


Command Binding Parameter Inference

Now you can declare a command method without @BindingParam:

//original usage
public void pick(@BindingParam("checked") boolean isPicked,
                 @BindingParam("picked")Item item){...}

//simplified usage
public void pick( boolean isPicked, Item item){...}


When passing parameters to that command method above, you don't need to specify a key now. ZK can infer each parameter according to its order and type.

<!-- original syntax -->
<checkbox onCheck="@command('pick', checked=self.checked, picked=each)">

<!-- shortcut syntax -->
<checkbox onCheck="@command('pick',self.checked, each)">



For running examples, please check MVVM example project.


Theme Template Supports Compact Themes

ZK Theme Template provides an easy way for theme customization. It is now updated to support compact themes — you can now customize a compact theme (e.g. iceblue_c) as easy as the standard themes, and upgrade the theme easily when you upgrade your ZK version.

Components

Custom Tree Line

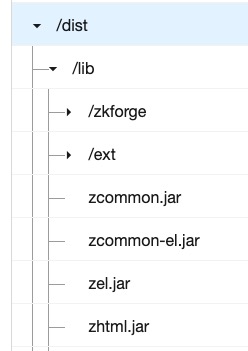

Treerow contains explicit CSS class to show its position in a tree e.g. .z-treerow-child, .z-treerow-last-child, .z-tree-line-anchor, so that you can apply your custom CSS to add lines among tree rows, for example:

caption

Please check the example project.

Radio/Checkbox Status CSS Class

Radio/Checkbox both have CSS class applied on them according to their status. Therefore, you can apply custom style easily.

.z-checkbox-on{...}
.z-checkbox-off{...}

.z-radio-on{...}
.z-radio-off{...}


Backward Compatibility: ZK 7 Form Binding

In ZK 8 a new MVVM form binding was introduced which made it difficult for ZK 7 projects to upgrade. In ZK 9.5 we have now ported back ZK 7’s simple form binding. If you have ZK 7 projects that use the legacy simple form binding, you can easily upgrade to ZK 9.5 with minimum code changes.

Notification Style Updated

The Notification style for Iceblue, Iceblue_c and ThemePack Themes are updated to a modern look and feel while providing the requested contrast level for WCAG compliance. (TODO: add screenshots for old and new style)

9.5.0

Zk95-info.jpg Zk95-warn.jpg Zk95-error.jpg


9.1.0

Zk91-info.jpg Zk91-warn.jpg Zk91-error.jpg




Introducing fetch( ) API for Redirection/SSO handling

Redirects (HTTP 302) including SSO handling has always been a common challenge in Ajax. In 9.5 the fetch( ) API is used instead of XHR allowing better redirect handling.

Client API supports scrollIntoView and focus using selector

With this new feature, developers can now use selector to focus or scrollIntoView on the client side. (Benefits .. or previous challenges?..)

Listbox Enhancements

Listbox is one of the most commonly used components. It is complicated in the way that it provides a table view with selection, frozen, paging, ROD, auto-sizing and many custom attributes. In ZK 9.5 we have made several enhancements to cover a wider range of use cases.

  • Fixed listbox sizing issue with "rows" attribute
  • Listbox model now supports an array of class
  • Fixed broken ROD popup & JS error during partial invalidate
  • Refine the selection behavior when part of the items are selected

iOS13+ Support

Apple has changed the implementation and now an iOS13 device no longer identifies itself with the iOS Safari User Agent (UA) string, but with the MacOS Safari one instead. Corresponding changes have been made in ZK 9.5 to ensure ZK detects the devices correctly.

Upgrade notes.png

  • Since 9.5.0, the transitive dependency of slf4j-jdk14 was removed. Please specify your preferred logger instead.
  • Since 9.5.0, the transitive dependency of closure-compiler-unshaded was removed. If you wish to enable source maps, please include it manually.
  • zAu.onError API was changed since fetch() API is now used instead of XHR.
  • Due to ZK-4622, the DIV of grid/listbox/tree header border is removed. You may need to adjust the styles accordingly.
