Panel is a container that has specific functionality and structural components that make it the perfect building block for application-oriented user interfaces. The Panel contains bottom, top, and foot toolbars, along with separate header, footer and body sections. It also provides built-in collapsible, closable, maximizable, and minimizable behavior, along with a variety of pre-built tool buttons that can be wired up to provide other customized behavior. Panels can be easily embedded into any kind of ZUL component that is allowed to have children or layout component. Panels also provide specific features like float and move. Unlike Window, Panels can only be floated and moved inside its parent node, which is not using zk.setVParent() function at client side. In other words, if Panel's parent node is an relative position, the floated panel is only inside its parent, not the whole page. The second difference of Window is that Panel is not an independent ID space (by implementing IdSpace), so the ID of each child can be used throughout the panel.
<panel height="20%" style="margin-bottom:10px" title="Panel1" border="normal" maximizable="true" closable="true" collapsible="true"> <caption iconSclass="z-icon-home"/> <panelchildren>PanelContent</panelchildren> </panel>
Panel panel = new Panel(); panel.setTitle("Here is Title"); panel.setBorder("normal"); panel.setFramable(true); Panelchildren pc = new Panelchildren(); pc.setParent(panel); pc.appendChild(new Label("Here is Content"));
The panel can now be resized as long as the attribute sizable is set to true. The example ZUL below shows a panel which can be resized and the image displays a panel which is in the process of being resized.
<panel sizable="true" id="panel" framable="true" width="500px" height="400px" title="Panel" maximizable="true" minimizable="true" border="normal" collapsible="true" closable="true"> <panelchildren> <textbox width="100%" height="100%" /> </panelchildren> </panel>
<portallayout> <portalchildren style="padding: 5px" width="30%"> <panel height="150px" title="Google Tools" border="normal" collapsible="true" closable="true" maximizable="true" style="margin-bottom:10px"> <panelchildren> </panelchildren> </panel> <panel height="300px" title="LabPixies Clock" border="normal" collapsible="true" closable="true" maximizable="true" style="margin-bottom:10px" draggable="false"> <panelchildren> This is not draggable. </panelchildren> </panel> </portalchildren> </portallayout>
It specifies whether to display the border. Currently, it supports
rounded+. The default is
none, i.e., no border.

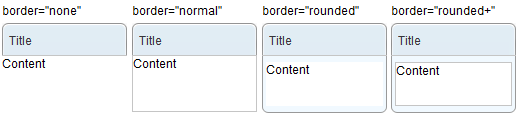

Here is the effect with different borders:
Backward Compatibility: ZK 5.0.5 and prior shall use the combination of the border and framable property as follows.
Border in 5.0.6 The equivalent combination in 5.0.5 and prior Description border="none" border="none" framable is default to
border="normal" border="normal" framable is default to
border="rounded" framable="true" border is default to
border="rounded+" border="normal" framable="true"
- Notice that the use of the border and framable combiation still works in 5.0.6 (backward compatible).
Besides this attribute, you could use Caption to define a more sophisticated caption (aka., title). If the panel has a caption whose label Caption.getLabel() is not empty, then this attribute is ignored. (Default: empty).
Specify the panel whether to show a close button on the title bar or not. If closable, a button is displayed and the onClose event (OpenEvent) is sent if a user clicks the button. (Default: false)
To make the scrollbar appear when content exceeds panel height, specify
style="overflow: auto" on Panelchildren.
<panel height="200px"> <panelchildren style="overflow: auto"> <div style="background: #999966" height="195px" /> <div style="background: #669999">Div Content</div> </panelchildren> </panel>
Panel supports three kinds of Toolbar positions:
Foot. For example:
<panel id="panel" framable="true" width="500px" height="550px" title="Panel component" floatable="true" movable="true" maximizable="true" minimizable="true" border="normal" collapsible="true" closable="true"> <toolbar> ... // Top Toolbar of the panel </toolbar> <panelchildren> ... // Each added child will show into the body content of the panel </panelchildren> <toolbar> ... // Bottom Toolbar of the panel </toolbar> <toolbar> ... // Foot Toolbar of the panel </toolbar> </panel>
- Top Toolbar (Line 5): It is used to show the top toolbar close to the body content of the panel. (It is an option)
- Bottom Toolbar (Line 11): It is used to show the bottom toolbar close to the body content of the panel. (It is an option)
- Foot Toolbar (Line 14): It is used to show the operating button under the body content with a few padding. (It is an option)
Please refer Small_Talks/2008/July/Using_Panel_to_Lay_out_Your_Website for details.
Denotes the position of the window is moved by a user.
Denotes user has opened or closed a component.
client sends this event after opening or closing the
It is useful to implement load-on-demand by listening to
first time the component is opened.
Denotes user has maximize a component.
Denotes user has minimize a component.
Denotes the close button is pressed by a user, and the
component shall detach itself.
Denotes the panel's size is updated by a user.
Denotes the panel's zindex is updated by a user.
- Inherited Supported Events: XulElement
|5.0||Portallayout, panels and events||http://www.zkoss.org/forum/listComment/10765|
|5.0.3||July, 2010||The draggable property can be used to control the drag-ability in a portal layout.|
|5.0.6||January, 2010||The framable property was deprecated. Please refer to #Border for details.|
