ZK Spreadsheet Essentials/Working with Spreadsheet/Advanced/Reference to Spring Beans

Available in ZK Spreadsheet EE only

Overview

Similar to reference to Java Bean, Spreadsheet also allows you to use EL (Expression Language) in cells and it resolves the name expressions to Spring beans.

The process of resolving a variable to a Spring bean is the same the one of resolving to a Java Bean. The difference is when Spreadsheet asks a variable resolver defined in the zul page to retrieve the bean, we give it a Spring bean resolver that resolves variables as Spring beans. Hence, to use the feature is quite simple, just declare a Spring bean resolver in a ZUL page and use same EL expression as we use in Java Bean, e.g. enter =myBean.myProperty.

Example

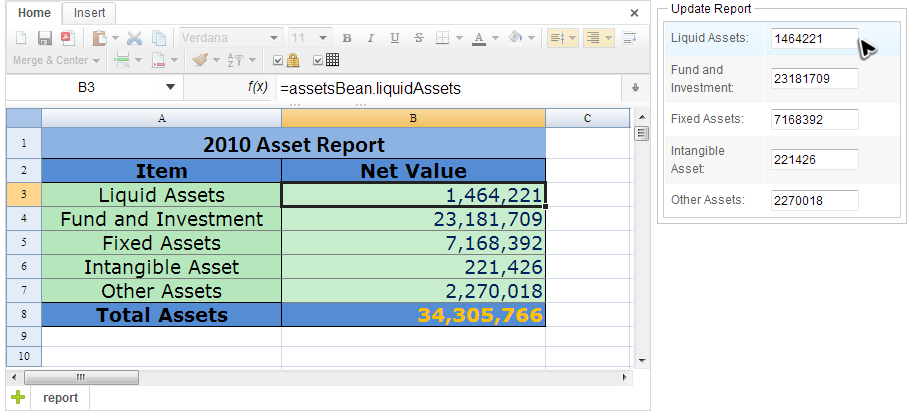

We continue to use the same example in Reference to Java Beans. Assume the application below has a sheet in protection, a user cannot modify any cells directly in the sheet. They can only update value via panel on the right side.

You can see from the formula bar, the content of B3 is an EL expression, =assetsBean.liquidAssets.

To use Spring bean resolver, there must be some Spring bean defined in your application. In our example, it's AssetsBean:

@Component
@Scope(value="session", proxyMode=ScopedProxyMode.TARGET_CLASS)
public class AssetsBean {
    private double liquidAssets;
    private double fundInvestment;
    private double fixedAssets;
    private double intangibleAsset;
    private double otherAssets;
...
}

Declare ZK's org.zkoss.zkplus.spring.DelegatingVariableResolver in a ZUL page. (You can refer to ZK Developer's Reference/Integration/Middleware Layer/Spring#Access a Spring Bean in a ZUL for detail.)

<?variable-resolver class="org.zkoss.zkplus.spring.DelegatingVariableResolver"?>
<zk>
	<window hflex="1" vflex="1"
		apply="org.zkoss.zss.essential.advanced.RefSpringBeanComposer">
		<hlayout hflex="1" vflex="1">
			<spreadsheet id="ss" src="/WEB-INF/books/bean.xlsx"
				maxrows="200" maxcolumns="40"
				showFormulabar="true" showContextMenu="true"
				showToolbar="true" showSheetbar="true"
				hflex="1" vflex="1" width="100%" >
			</spreadsheet>
			...
		</hlayout>
	</window>
</zk>

Example

We continue to use the same example in Reference to Java Beans. Assume the application below has a sheet in protection, a user cannot modify any cells directly in the sheet. They can only update value via panel on the right side.

You can see from the formula bar, the content of B3 is an EL expression, =assetsBean.liquidAssets.

To use Spring bean resolver, there must be some Spring bean defined in your application. In our example, it's AssetsBean:

@Component
@Scope(value="session", proxyMode=ScopedProxyMode.TARGET_CLASS)
public class AssetsBean {
    private double liquidAssets;
    private double fundInvestment;
    private double fixedAssets;
    private double intangibleAsset;
    private double otherAssets;
...
}

Declare ZK's org.zkoss.zkplus.spring.DelegatingVariableResolver in a ZUL page. (You can refer to ZK Developer's Reference/Integration/Middleware Layer/Spring#Access a Spring Bean in a ZUL for detail.)

<?variable-resolver class="org.zkoss.zkplus.spring.DelegatingVariableResolver"?>
<zk>
	<window hflex="1" vflex="1"
			apply="org.zkoss.zss.essential.advanced.RefSpringBeanComposer">
		<hlayout hflex="1" vflex="1">
			<spreadsheet id="ss" src="/WEB-INF/books/bean.xlsx"
				maxrows="200" maxcolumns="40"
				showFormulabar="true" showContextMenu="true"
				showToolbar="true" showSheetbar="true"
				hflex="1" vflex="1" width="100%" >
			</spreadsheet>
			...
		</hlayout>
	</window>
</zk>

When Spring Bean Changes

In our example, the sheet is protected. Users can only change value from the panel on the right hand side. But Spreadsheet won't know the change of a bean unless you notify it. When you notify the Spreadsheet of changed beans, it will collect which cells are affected (i.e. those dependent cells with the specified bean names), and update them accordingly.

@VariableResolver(org.zkoss.zkplus.spring.DelegatingVariableResolver.class)
public class RefSpringBeanComposer extends SelectorComposer<Component> {

	@Wire
	private Spreadsheet ss;
	@Wire
	private Doublebox liquidBox;
	@Wire
	private Doublebox fundBox;
	@Wire
	private Doublebox fixedBox;
	@Wire
	private Doublebox intangibleBox;
	@Wire
	private Doublebox otherBox;

	@WireVariable
	private AssetsBean assetsBean;

	@Override
	public void doAfterCompose(Component comp) throws Exception {
		super.doAfterCompose(comp);
		Ranges.range(ss.getBook().getSheetAt(0)).protectSheet("");
	}

	@Listen("onChange = doublebox")
	public void update() {
		updateAssetsBean();
		//notify spreadsheet about the bean's change
		Ranges.range(ss.getSelectedSheet()).notifyChange(new String[] {"assetsBean"} );
	}

	/**
	 * load user input to the bean.
	 */
	private void updateAssetsBean() {
		assetsBean.setLiquidAssets(liquidBox.getValue());
		assetsBean.setFundInvestment(fundBox.getValue());
		assetsBean.setFixedAssets(fixedBox.getValue());
		assetsBean.setIntangibleAsset(intangibleBox.getValue());
		assetsBean.setOtherAssets(otherBox.getValue());

	}
}

• Line 1: Add a variable resolver let us get Spring beans with @WireVariable.
• LIne 17: We can easily get a reference to a Spring with @WireVariable. Please refer to ZK Developer's Reference/Integration/Middleware Layer/Spring#Wire a Spring Bean for detail.
• Line 30: Notify whole book of one or more beans' change, all cells of whole book associated with changed bean will be updated.

All source code listed in this book is at Github.
