ZK Style Guide/XUL Component Specification/Borderlayout/Default

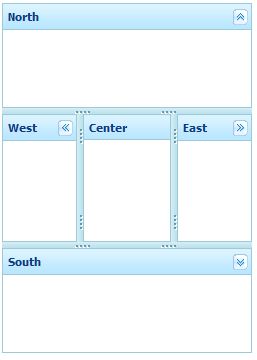

This is the Default mold for Borderlayout.

Source

The CSS source for Borderlayout from GitHub

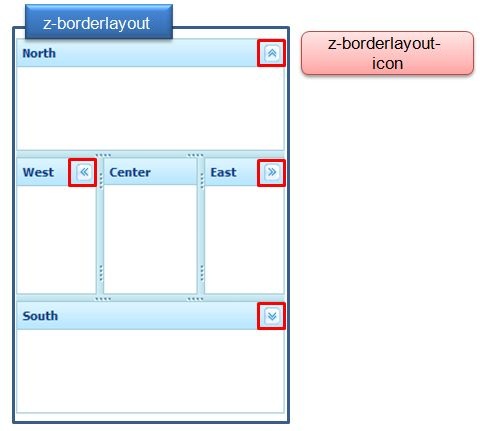

Structure

Events

CSS\Action	Normal (Open)	Hover	Click, Select, and Drag.	Focus	Focus and Hover	Disable
Naming:	.z-border-layout
Supported:	V

Note: An exclamation mark(!) means that the action effect is done by CSS background , not CSS background-position

CSS\Action	Normal (Open)	Hover	Click, Select, and Drag.	Focus	Focus and Hover	Disable
Naming:	.z-border-layout-icon
Supported:	V

Note: An exclamation mark(!) means that the action effect is done by CSS background , not CSS background-position

CSS Specification

Class Name	Description	Default Values
.z-border-layout	Background and color	width:100%; height:100%; overflow:hidden; background-color:#CDE6F5; border:0 none; position: relative; visibility: hidden;
.z-border-layout-icon	Background of tool icons	overflow: hidden; width: 16px; height: 16px; float: right; margin-left: 2px; cursor: pointer; background: transparent no-repeat 0 0; background-image : url(${c:encodeURL('~./zkex/zul/img/layout/borderlayout-btn.gif')});

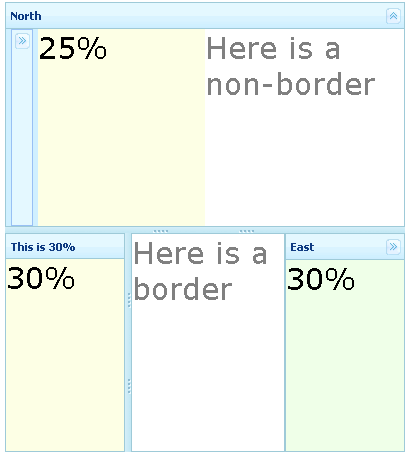

Example

<style>
.z-border-layout {
	background-color: #D0F0FF;
}
.z-west-header, .z-center-header, .z-east-header, .z-north-header, .z-south-header {
	background-color:#E4F8FF;
	background-position: 0 13px;
}
.z-east-colpsd, .z-west-colpsd, .z-south-colpsd, .z-north-colpsd {
	background-color:#E4F8FF;
}
.z-border-layout-icon, .z-north-splt, .z-south-splt, .z-east-splt, .z-west-splt {
	opacity: .6;
	filter: alpha(opacity=60);
}
</style>
