New Features of ZK 5.0.3

Author
Timothy Clare, Technology Evangelist, Potix Corporation
Date
June 29th, 2010
Version
ZK 5.0.3

ZK 5.0.3 is a maintenance release focusing on fixing some issues and introducing requested features. Requested features included Calendar day rendering along with hflex and vflex improvements.

Calendar Day Renderer

It is now possible to customize the appearance of days on ZK's Calendar. This is achieved by overriding the default renderer at the client.

An example: Customizing Calendar's disabled days

Not in the image, days belonging to the previous and next month are not black, they are a light shade of grey as indicated by the function disabled in the zul.db.Renderer.

Calendar with renderer.png


For more information please consult the Renderer jsdoc.

Controlling whether a portallayout panel is draggable

ZK 5.0.3 now affords us the ability to specify whether a portallayout panel can be drag-able or not. The code below demonstrates this functionality.

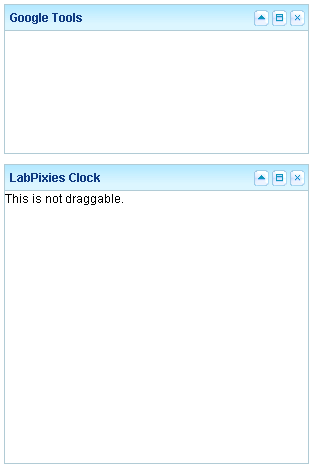

Portal layout draggable option.png

<portallayout>
   <portalchildren style="padding: 5px" width="30%">
      <panel height="150px" title="Google Tools" border="normal"
           collapsible="true" closable="true" maximizable="true"
           style="margin-bottom:10px">
         <panelchildren>

         </panelchildren>
      </panel>
      <panel height="300px" title="LabPixies Clock" border="normal"
           collapsible="true" closable="true" maximizable="true"
           style="margin-bottom:10px"
           draggable="false">
          <panelchildren>
             This is not draggable.
          </panelchildren>
      </panel>
   </portalchildren>
</portallayout>

Tabbox can auto grow

Assume we have two tabpanels, with one larger than the other. If the smaller is displayed first upon showing the new tabpanel the tabbox will now resize itself to accommodate the size of its contents. Below is the code and output.

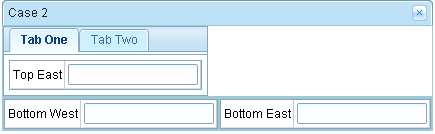

Tabbox expand.png

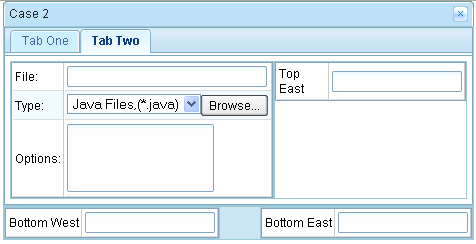

Tabbox expand2.png

<window id="tabView" title="Case 2" closable="true" hflex="min" width="500px">
	<borderlayout hflex="min" vflex="min">
		<north hflex="min" vflex="min">

			<tabbox hflex="min" vflex="min">
				<tabs>
					<tab label="Tab One"/>
					<tab label="Tab Two"/>
				</tabs>

				<tabpanels hflex="min" vflex="min">
				<!--
					<custom-attributes org.zkoss.zul.client.rod="false"/>
				 -->
					<tabpanel hflex="min" vflex="min">
						<grid hflex="min" vflex="min">
							<rows>
								<row>
									<label value="Top East"/>
									<textbox />
								</row>
							</rows>
						</grid>

					</tabpanel>
					<tabpanel hflex="min" vflex="min">
						<borderlayout hflex="min" vflex="min">
							<west hflex="min" vflex="min">
								<grid hflex="min" vflex="min">
								<rows>
								<row>
									<label value="File:"/>
									<textbox width="98%"/>
								</row>
								<row>
									<label value="Type:"/>
									<hbox>
										<listbox rows="1" mold="select">
											<listitem label="Java Files,(*.java)"/>
											<listitem label="All Files,(*.*)"/>
										</listbox>
										<button label="Browse..."/>
									</hbox>
								</row>
								<row>
									<label value="Options:"/>
									<textbox rows="3" hflex="min" vflex="min"/>
								</row>
								</rows>
								</grid>
							</west>
							<east hflex="min" vflex="min">
								<grid hflex="min" vflex="min">
								 	<rows>
										<row>
											<label value="Top East"/>
											<textbox />
										</row>
									</rows>
								</grid>

							</east>
						</borderlayout>

					</tabpanel>
				</tabpanels>
			</tabbox>
		</north>
		<center hflex="min" vflex="min">
		<borderlayout hflex="min" vflex="min">
			<west hflex="min" vflex="min">
				<grid hflex="min" vflex="min">
					<rows>
						<row>
							<label value="Bottom West"/>
							<textbox />
						</row>
					</rows>
				</grid>
			</west>
			<east hflex="min" vflex="min">
				<grid hflex="min" vflex="min">
					<rows>
						<row>
							<label value="Bottom East"/>
							<textbox />
						</row>
					</rows>
				</grid>
			</east>
		</borderlayout>
		</center>
	</borderlayout>
</window>
