Fisheye

Employment/Purpose

A fisheye item

Example

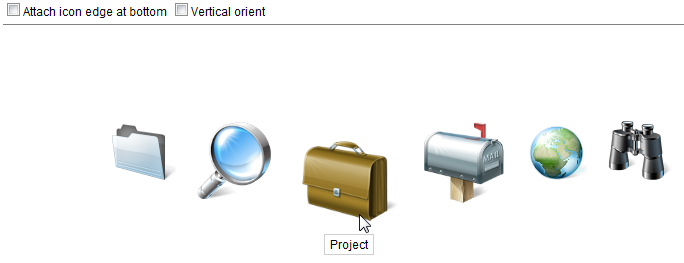

ZKComRef fisheyebar.png

<zk>
	<div height="450px">
		<checkbox label="Attach icon edge at bottom"
			onCheck='fsb.attachEdge=self.checked?"bottom":"top"' />
		<checkbox label="Vertical orient"
			onCheck='fsb.orient=self.checked?"vertical":"horizontal"' />
		<separator bar="true" />
		<fisheyebar id="fsb" style="position:absolute;margin:80px 150px;"
			attachEdge="top" itemWidth="80" itemHeight="80" itemMaxHeight="160" itemMaxWidth="160">
			<fisheye image="/img/Centigrade-Widget-Icons/FolderABlue-128x128.png" label="Folder"
				onClick="alert(self.label)" />
			<fisheye image="/img/Centigrade-Widget-Icons/ReadingGlass-128x128.png" label="Reading Glasses"
				onClick="alert(self.label)" />
			<fisheye image="/img/Centigrade-Widget-Icons/Briefcase-128x128.png" label="Project"
				onClick="alert(self.label)" />
			<fisheye image="/img/Centigrade-Widget-Icons/MailboxFlag-128x128.png"
				label="Email" onClick="alert(self.label)" />
			<fisheye image="/img/Centigrade-Widget-Icons/Globe-128x128.png"
				label="Globe" onClick="alert(self.label)" />
			<fisheye image="/img/Centigrade-Widget-Icons/Spyglass-128x128.png" label="Spyglass"
				onClick="alert(self.label)" />
		</fisheyebar>
	</div>
</zk>

Properties

Dynamic Images

For example you can create an image using the Java2D libraries and then set the content of the fisheye to the created image, below is an example of how to do this.

<?page title="Auto Generated index.zul"?>
<zk>
	<window title="test of autodisable">
		<fisheyebar><fisheye id="fish1" /></fisheyebar>

		<zscript>
		import java.awt.*;
		import java.awt.image.*;
		import java.awt.geom.*;


		void draw() {
			BufferedImage bi = new BufferedImage(200, 200, BufferedImage.TYPE_INT_RGB);
			Graphics2D g2d = bi.createGraphics();
			Line2D line = new Line2D.Double(0, 0, bi.getWidth(), bi.getHeight());
			g2d.setColor(Color.blue);
			g2d.setStroke(new BasicStroke(100));
			g2d.draw(line);
			fish1.setImageContent(bi);
		}

		draw();
		</zscript>
	</window>
</zk>
[Since 5.0.0]

Inherited Functions

Please refer to LabelImageElement for inherited functions.

Supported Events

Name
Event Type
None None

Supported Children

*None

Use Cases

Version Description Example Location


Version History

Last Update : 2011/7/29


Version Date Content
5.0.0 January 2010 Fisheye supports dynamic images
