GoldenPanel

[ since 8.6.0 ]

Employment/Purpose

GoldenPanel is the only child type of GoldenLayout. It allows us to rearrange them by dragging the tab.

Example

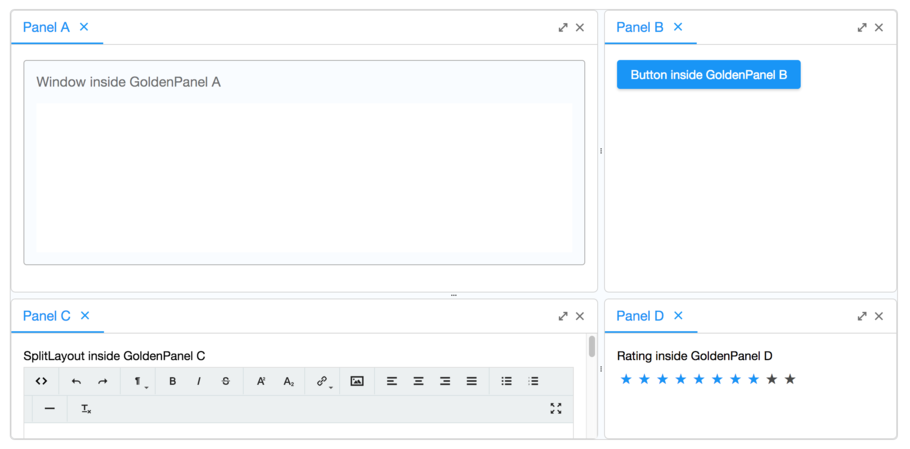

ZKCompRef GoldenLayout.png

    <goldenlayout vflex="1" hflex="1">
        <attribute name="areas">
            A A B
            A A B
            C C D
        </attribute>
        <goldenpanel area="A" title="Panel A">
            <window vflex="1" title="Window inside GoldenPanel A" border="normal"/>
        </goldenpanel>
        <goldenpanel area="B" title="Panel B">
            <button label="Button inside GoldenPanel B"/>
        </goldenpanel>
        <goldenpanel area="C" title="Panel C">
            <vlayout>
                SplitLayout inside GoldenPanel C
                <splitlayout hflex="1" height="500px">
                    <tbeditor vflex="1"/>
                    <window border="normal" title="Window" vflex="1"/>
                </splitlayout>
            </vlayout>
        </goldenpanel>
        <goldenpanel area="D" title="Panel D">
            <vlayout>
                Rating inside GoldenPanel D
                <rating max="10" rating="8"/>
            </vlayout>
        </goldenpanel>
    </goldenlayout>

Properties and Features

Area

The area attribute is a sugar for initializing the layout. The GoldenPanels with the same area will be stacked together with the added order. And will be placed at the position of the area in the areas attribute of it's parent GoldenLayout.


Title

The title attribute is the text on the tab of the GoldenPanel. If not specified, tab will still be rendered but with default title Panel.


Draggable

If false is specified, This GoldenPanel will not be able to dragged.


Droppable

If false is specified, No other GoldenPanel is allowed to be dropped on this GoldenPanel.


Closable

If false is specified, This GoldenPanel will not be able to be close by user action. And also the close icon will not show.


Supported Events

Name
Event Type
onActive
Event: Event

Denotes user has activated this GoldenPanel.

onPanelDrop
Event: Event

Denotes user has dropped this GoldenPanel.

onFlexSize
Event: Event

Denotes user has resized this GoldenPanel.

onClose
Event: Event

Denotes user has closed this GoldenPanel.

onMaximize
Event: Event

Denotes user has maximized this GoldenPanel.

onMinimize
Event: Event

Denotes user has minimized this GoldenPanel.

Supported Children

* All


Version History

Last Update : 2018/10/5


Version Date Content
