Contents

Portalchildren

Employment/Purpose

The column of Portallayout

Child of Portalchildren can only be Panel

Example

ZKComRef Portallayout Example.PNG


<portallayout>
	<portalchildren width="50%">
		<panel height="150px" title="Yahoo">
			<panelchildren>
				<iframe width="100%" src="http://www.yahoo.com/"/>
			</panelchildren>
		</panel>
		<panel height="300px" title="Google">
			<panelchildren>
				<iframe width="100%" src="http://www.google.com/"/>
			</panelchildren>
		</panel>
	</portalchildren>
	<portalchildren width="50%">
		<panel height="150px" title="ZK">
			<panelchildren>
				<iframe width="100%" src="http://www.zkoss.org/"/>
			</panelchildren>
		</panel>
	</portalchildren>
</portallayout>

Properties

Title

[ Since 9.0.0 ]

Sets the title of the portalchildren. If the title is not empty/null, frame design will be applied.

Frame Design

PortalChildren now provides a frame design, making it extremely easy to create a Kanban-like layout for your application. To turn on the PortalChildren frame design, just specify the title attribute on the PortalChildren.

Example

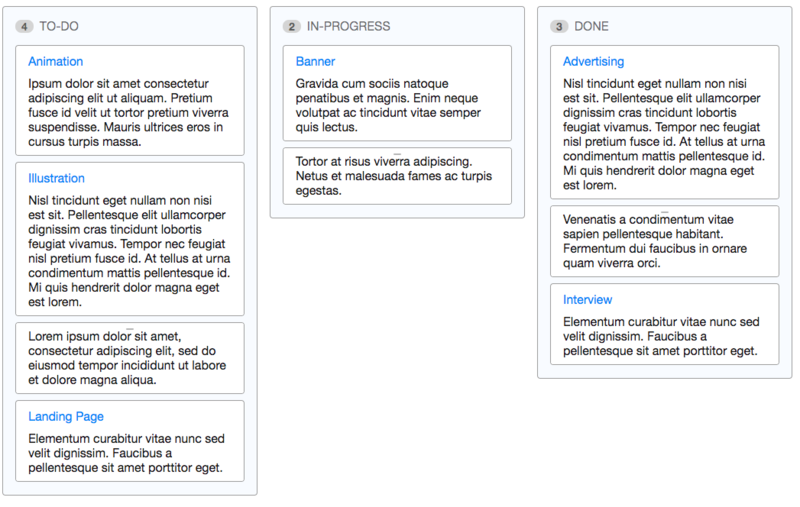

Each PortalChildren with title can be used as a Kanban board column to represent a process stage, and the panels inside each column represent tasks in the said stage. The number next to the PortalChildren title is a counter, indicating the total number of panels inside the said column.

If a panel has a panel title, users can drag and hold the panel title to move it to the appropriate column. If the panel does not have a panel title, you can drag the small dragging button at the top of the panel to move.

<zk>
  <style>
    .z-panel {
      width: 300px;
    }
  </style>
   <portallayout>
     <portalchildren title="TO-DO">
       <panel title="Animation" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel title="Illustration" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel title="Landing Page" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
    </portalchildren>
     <portalchildren title="IN-PROGRESS">
       <panel title="Banner" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel border="normal">
         <panelchildren>......</panelchildren>
       </panel>
     </portalchildren>
      <portalchildren title="DONE" >
       <panel title="Advertising" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel border="normal">
         <panelchildren>......</panelchildren>
       </panel>
       <panel title="Interview" border="normal">
         <panelchildren>......</panelchildren>
       </panel>
     </portalchildren>
   </portallayout>
</zk>

CounterVisible

[ Since 9.0.0 ]

Sets whether the counter is visible. Meaningful only if frame design is applied.


Supported Events

Name
Event Type
None None

Supported Children

* Panel

Use Cases

Version Description Example Location


Version History

Last Update : 2019/11/19


Version Date Content
9.0.0 Nov 2019 ZK-4398: Provide PortalChildren title and frame design
