  • Author
    Robert Wenzel, Engineer, Potix Corporation
  • Date
    April 2016
  • Version
    ZK 8.0

Contents

Introduction

To wrap up the Wizard Example Series, here is the final Part showing how things finally fit together when applying a 3rd party CSS framework (Bootstrap) to the wizard.

The implementation decisions/techniques used in the previous chapters now become handy. The strict separation between view and viewModel code enables the style overhaul without touching any Java code. Restyling an application still requires a significant amount of work, in which the major task is to adjust the various zul pages and templates to render the markup required by Bootstrap. However, compared to changing both zul and java code, the possibility of introducing errors is much smaller (and even if new problems arise, they are obviously somewhere in the view).

Here is a recording of the results (descriptions of the most significant changes will follow below):


File:Order-wizard with style.swf

Adding the Bootstrap Resources

It's straight forward: just add the required css/js resources. ZK offers several ways to do so:

For simplicity's sake, I just added them to my root page.

/wizardexample/src/main/webapp/order.zul [1]
  <!-- Latest compiled and minified CSS -->
  <?link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css" ?>
  <!-- Latest compiled and minified JavaScript -->
  <?script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/js/bootstrap.min.js" ?>

Of course, in a real application, you'll likely choose to include the css/js files in your web application (not the topic here).

Render the UI in Bootstrap Style

Once the layout has been decided (in the ideal case a web designer decided for you and provided static html mockups), you can change your zul files accordingly.

Here I'll not try to make all ZK components look "like" Bootstrap, instead I'll use XHTML components and native elements to produce the HTML necessary for Bootstrap. This allows you to use and update the 3rd-party css styles directly whenever needed (or even apply different bootstrap themes later).

ZK8's reusable templates and shadow elements help again to avoid repeating the more verbose HTML markup. If necessary the markup structure of an existing ZK component can be adjusted using a custom mold to fit into the desired layout.

Page/Wizard Layout

/wizardexample/src/main/webapp/order.zul [2]

Here, the bootstrap css class (container) - was added to provide a responsive fixed width layout - nothing else worth mentioning here.

<x:div class="container"
	 viewModel="@id('vm') @init('zk.example.order.OrderViewModel')"
	 validationMessages="@id('vmsgs')"
	 onBookmarkChange="@command('gotoStep', stepId=event.bookmark)">
...

More interesting are the changes in the wizard template defining the overall look and feel:

/wizardexample/src/main/webapp/WEB-INF/zul/template/wizard/wizard.zul [3]

One of the straightforward changes is applying the bootstrap button styles:

    <button zclass="btn btn-default" label="@load(wizardVM.backLabel)" onClick="@command(wizardVM.backCommand)" />
    ...
    <button zclass="btn btn-success pull-right" label="@load(wizardVM.nextLabel)" onClick="@command(wizardVM.nextCommand)" />
original style (left) <-> after bootstrap makeover (right)

NOTE: I use zclass instead of sclass to replace ZK's own button class (z-button) using bootstrap's css-classes (btn btn-default ...).

For the progress bar, it was also simple to adapt the bootstrap progressbar example markup. The outer <n:div> is rendered using the native namespace, since it does not require dynamic updates, while the inner <x:div> uses an xhtml component to enable data binding on the dynamic style and textContent properties. A notifyChange on the progress-property in our wizardVM object will automatically adjust the label and progressbar width (triggering the css animation provided by bootstrap).

	<template name="wizardProgress">
		<n:div class="progress">
			<x:div class="progress-bar progress-bar-success progress-bar-striped"
				style="@load(('width: ' += wizardVM.progress += '%; min-width: 2em;'))"
				textContent="@load((wizardVM.progress += '%'))"/>
		</n:div>
	</template>
  • Line 5: the textContent-attribute on XHTML components is a new ZK8 feature to allow dynamic text content directly inside any html tag

In a similar fashion a bootstrap panel can be composed (I assume you have noticed the pattern):

	<div zclass="panel panel-primary"
			viewModel="@id('wizardVM') @init(wizardModel)"
			validationMessages="@id('vmsgs')"
			onOK="@command(wizardVM.nextCommand)">
		<n:div class="panel-heading">
			<x:h3 class="panel-title" textContent="@load(wizardVM.currentStep.title)"/>
		</n:div>
		<n:div class="panel-body">
			<sh:apply template="@init(empty wrapperTemplate ? 'defaultWizardContentWrapper' : wrapperTemplate)"/>
		</n:div>
	</div>

Basket Layout

On the basket page the <grid> was replaced by a striped bootstrap table. The shadow element <sh:forEach> allows you to reuse the same ListModel of BasketItems from the BasketViewModel while only changing the layout and bind expressions. As described above, xhtml and native elements are used to render the markup required by bootstrap.

The Tooltips are enabled using the Bootstrap JS API. More on that below.

In order to make the page a little more responsive to browser width changes, the Basket recommendations on the bottom use the Bootstrap grid system to vary the number of recommendations per row at different display sizes:

/wizardexample/src/main/webapp/WEB-INF/zul/order/steps/basket.zul [4]
<x:div class="row">
	<sh:forEach items="@init(basketVM.recommendedItemsModel)">
		<x:div class="col-lg-4 col-sm-6">
			<x:div class="well well-sm">
				<sh:apply template="basketItemLabel" item="@init(each)"/>
				<button zclass="btn btn-info btn-xs pull-right" iconSclass="z-icon-shopping-cart"
					onClick="@command('addRecommendedItem', item=each)"
					ca:data-toggle="tooltip" ca:data-placement="right"
					ca:data-title="${i18n:nls('order.basket.add')}"/>
			</x:div>
		</x:div>
	</sh:forEach>
</x:div>

Here are the results:

original style (left) <-> after bootstrap makeover (right)

Form Layout

The remaining pages previously rendered using a <grid> layout are now implemented using Bootstrap's horizontal form layout. This achieves the popular look and responsive sizing/positioning of input elements and their labels. The parameters to the <formRow> template remain identical to the previous version, since the model data hasn't changed.

	<x:div class="form-horizontal">
		<formRow type="static" label="@init(i18n:nls('order.basket'))" value="@init(savedOrder.basket)"/>
		<x:div class="alert alert-info" role="alert" textContent="${i18n:nls('order.shippingAddress.hint')}"/>
		<formRow type="textbox" label="@init(i18n:nls('order.shippingAddress.street'))"
			value="@ref(order.shippingAddress.street)"
			error="@ref(vmsgs['p_shippingAddress.street'])"/>
		<formRow type="textbox" label="@init(i18n:nls('order.shippingAddress.city'))"
			value="@ref(order.shippingAddress.city)"
			error="@ref(vmsgs['p_shippingAddress.city'])"/>
		<formRow type="textbox" label="@init(i18n:nls('order.shippingAddress.zipCode'))"
			value="@ref(order.shippingAddress.zipCode)"
			error="@ref(vmsgs['p_shippingAddress.zipCode'])"/>
	</x:div>
  • Lines 1,3: using bootstrap specifc css classes (form-horizontal, alert, alert-info) on xhtml components


Inside the formRow template the restyling continues. I also chose to display validation errors in using a bootstrap css classes.

	<x:div sclass="@load(empty error ? 'form-group' : 'form-group has-error')">
		<sh:choose>
			<sh:when test="@load(type eq 'checkbox')">
				<n:div class="col-sm-offset-3 col-sm-9">
					<sh:apply template="checkbox"/>
				</n:div>
			</sh:when>
			<sh:otherwise>
				<x:label class="col-sm-3 control-label" textContent="@init(label)"/>
				<n:div class="col-sm-9">
					<sh:apply template="@load(type)"/>
				</n:div>
			</sh:otherwise>
		</sh:choose>
	</x:div>
	<sh:if test="@load(!empty error)">
		<x:div sclass="alert alert-danger well-sm" textContent="@load(error)"/>
	</sh:if>

	<template name="checkbox">
		<n:div class="checkbox">
			<checkbox zclass=" " checked="@bind(value)" onCheck="@command(updateCommand)" label="@load(label)"
				mold="formgroup"/>
		</n:div>
	</template>

	<template name="textbox">
		<textbox zclass="form-control" value="@bind(value)" onChange="@command(changeCommand)"/>
	</template>
	 ...
  • Line 1: <row> is replaced by a <x:div> with dynamic styling based depending on the presence of an error message
  • Line 17: conditionally output an error using a Bootstrap alert style
  • Line 23: apply a custom mold to render the checkbox and its label in the markup required by bootstrap

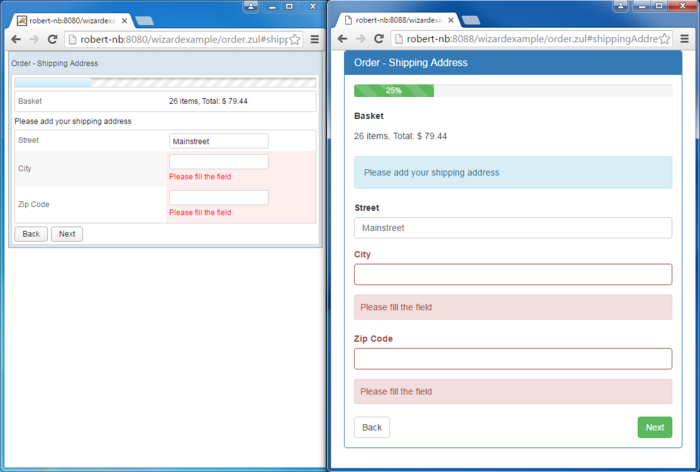

original style (left) <-> after bootstrap makeover (right)

Custom Checkbox Mold

Since bootstrap requires different html markup to render a checkbox inside a horizontal form, I decided to define a custom mold for this scenario.

The markup requried by Bootstrap.

	<label>
		<input type="checkbox"> Remember me
	</label>

The corresponding custom mold implementation in

/wizardexample/src/main/resources/web/js/zul/wgt/mold/checkbox-formgroup.js [5]
function (out) {
	var uuid = this.uuid, content = this.domContent_();
	out.push('<label', this.domAttrs_(), ' for="', uuid,'-real">',
			 '<input type="checkbox" id="', uuid, '-real"', this.contentAttrs_(), '/>',
			 content,'</label>');
}

As custom mold implementation requires some additional knowledge about the internal structure of a ZK widget, I try to use this approach only if necessary. This is an (often forgotten) available option for any ZK widget in case the rendered markup needs to be customized.

The new mold is registered in lang-addon.xml.

When upgrading to a different ZK version later this may need to be adjusted. On the other hand, it does provide the most efficient way to render custom markup, since it only happens on the client side.

Leverage the Bootstrap JS API

Bootstrap Tooltips

Bootstrap also offers a Javascript-api to enable dynamic effects. On the basket page I use Bootstrap-tooltips configured with ZK8's data-handler, which can be used throughout the application by simply adding client-side data-attributes.

<zk xmlns:sh="shadow" xmlns:x="xhtml" xmlns:n="native" xmlns:ca="client/attribute" xmlns:z="zk">
...
<button zclass="close" iconSclass="z-icon-times" onClick="@command('removeItem', basketItem=item)"
	ca:data-toggle="tooltip" ca:data-placement="right" ca:data-title="${i18n:nls('order.basket.remove')}"/>
...
<button zclass="btn btn-info btn-xs pull-right" iconSclass="z-icon-shopping-cart"
	onClick="@command('addRecommendedItem', item=each)"
	ca:data-toggle="tooltip" ca:data-placement="right" ca:data-title="${i18n:nls('order.basket.add')}"/>

An alternative to using "ca:data-title" is to use ZK's tooltiptext property which renders into the title attribute of the resulting DOM element. Since tooltip text is a server side attribute, it also allows the data-binding annotations @init/@load.

<span zclass=" " status="@ref(item.status)" sclass="@load(i18n:nlsSub(status, 'style'))"
	ca:data-toggle="tooltip" ca:data-placement="top" tooltiptext="@load(i18n:nls(status))">

Implementing the Data-Handler

Following the Bootstrap JS documentation the JS call below is necessary to initialize a tooltip for one or more specified DOM elements.

 $('#example').tooltip(options)

Since ZK pages are dynamic, the selector needs to be dynamic too - element Ids are generated and on top of that, ZK components may be added at any time into the DOM via AJAX. In such cases, the client-side widget lifecycle event w:onBind is a good hook to initialize JS behavior. Prior to ZK8, this was only possible using a client-side event listener.

<zk xmlns:w="client">
    <button w:onBind="jq(this.$n()).tooltip({placement: 'top'})" tooltiptext="my tooltip"/>
</zk>

A simple data-handler configuration could look like this in zk.xml.

<data-handler>
	<name>tooltip</name>
	<script>
		function (wgt, placement) {
			jq(wgt.$n()).tooltip({placement: placement});
		}
	</script>
</data-handler>

And the usage in a zul file.

<zk xmlns:w="client/attribute">
    <button ca:data-tooltip="top" tooltiptext="my tooltip"/>
</zk>

While this can be used in any page throughout the application, it is still quite limiting and not taking full advantage of the Bootstrap JS API (e.g. new parameters have to be added manually on by one). Since many Bootstrap and other JS effects are "toggled" in a similar way, we can configure a data-handler that covers those at once.

	<data-handler>
		<name>toggle</name>
		<script>
			function (wgt, dataValue) {
				jq(wgt.$n())[dataValue]();
			}
		</script>
	</data-handler>
  • Line 5: calls a JQuery function by its name (dataValue contains the function name, in this case 'tooltip')

This enables the following usage and enables other effects to be enabled with the same data-handler (e.g. modal dialogs see next chapter).

<zk xmlns:w="client/attribute">
    <button ca:data-toggle="tooltip" ca:data-placement="top" ca:data-title="my tooltip"/>
</zk>

This way any "data-*" attributes supported by the tooltip API can be used.

Bootstrap Modal

Using the same generic data-handler from above, the modal dialog integration is already showing the modal dialog.

The custom [error page is configured in zk.xml], different errors can load different dialogs, here I handle the OrderExceptions (thrown when a payment method is not available)

	<error-page>
		<exception-type>zk.example.order.api.OrderException</exception-type>
		<location>/WEB-INF/zul/order/error/orderError.zul</location>
	</error-page>
/wizardexample/src/main/webapp/WEB-INF/zul/order/error/orderError.zul [6]
<zk xmlns:ca="client/attribute" xmlns:z="zul" xmlns:x="xhtml">
	<div sclass="modal fade" ca:data-toggle="modal" ca:data-close-event="hidden.bs.modal" onModalClose="self.detach()" >
		<div xmlns="native" class="modal-dialog">
		...
		</div><!-- /.modal-dialog -->
	</div><!-- /.modal -->
</zk>

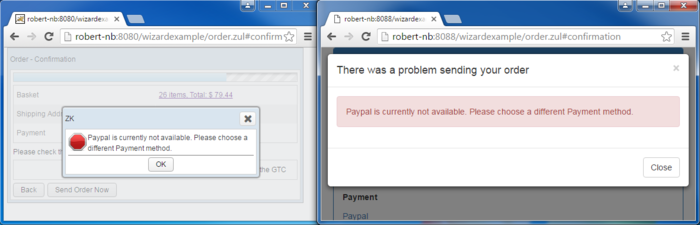

original style (left) <-> after bootstrap makeover (right)

In order to close the modal dialog I registered another data-handler, which will listen to the "hidden.bs.modal" event (triggered when the modal dialog has been closed and the fade out animation has finished). It then fire the onModalClose to the server side to detach the dialog.

	<data-handler>
		<name>close-event</name>
		<script>
			function (wgt, dataValue) {
				jq(wgt.$n()).on(dataValue, function() {
					wgt.fire("onModalClose", null, {toServer: true});
				});
			}
		</script>
	</data-handler>

I know using an inline event listener is a cheap shortcut here, but performance was not a concern in this example, especially when handling exceptions (as the name says this should be an exception and not the regular case). Alternatives are to apply a Composer and listen to the event inside a java class and destroy the error dialog. If further details are required, please let me know in the comments section below.

Summary

That's it for now, any ideas what to show next? Waiting for your comments.

Download

Running the Example

Checkout part-4

   git checkout part-4

The example war file can be built with maven:

   mvn clean package

Execute using jetty:

   mvn jetty:run

Then access the overview page http://localhost:8080/wizardexample/order.zul
