A rowlayout lays out a container which can have multiple columns, it offers a 12-column grid out of the box. You can simply chooses the number of columns to occupy for each major content area, and may also skip columns for extra space without inserting space-inducing elements.

The following diagram illustrates the rowlayout/rowchildren components and their various configurable parameters.

ZKComRef Rowlayout.PNG


Using rowlayout component is simple. First, use rowlayout to divide the horizontal space of its parent container into a number of columns. You can also optionally specify the column/spacing ratio. The default number of columns is 12, and the default column/spacing ratio is 1/3, which means column is 3 times wider than the spacing between columns. Spacing could be given as a ratio, a percentage or a floating-point number.

Next, use rowchildren component to place components into an integral number of these columns. You can also optionally specify how many columns to skip ahead.

Equally Divided

    <rowlayout ncols="12">
        <forEach begin="1" end="3">
            <rowchildren colspan="4" style="background-color: skyblue">

Position Offset

    <rowlayout ncols="12">
        <rowchildren colspan="4" style="background-color: skyblue" offset="2">
            offset 2 columns

Column Spacing

    <rowlayout ncols="12" spacing="100%">
        <forEach begin="1" end="3">
            <rowchildren colspan="4" style="background-color: skyblue">
                spacing = 100%

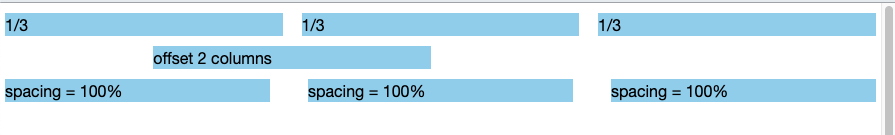

The above examples look like:


Supported Events

Event Type
None None

Supported Children

* Rowchildren

Use Cases

Version Description Example Location

Version History

Last Update : 2019/7/17

Version Date Content
