ZK Class Concept"

From Documentation
m
m (correct highlight (via JWB))

(9 intermediate revisions by 4 users not shown)
Line 1: Line 1:

{{ZKStyleGuidePageHeader}}

{{ZKStyleGuidePageHeader}}

ZK Class concept was introduced in ZK 3.6.0 version, it is a naming pattern, it appends some regular patterns for client action (please refer to the next section) , like click, focus, mouse-over, mouse-out, and so on.
+
'''zclass'''

 +
ZK Class (aka., zclass) is a naming pattern. The name assigned to zclass (<javadoc method="setZclass(java.lang.String)">org.zkoss.zk.ui.HtmlBaseComponent</javadoc>) will be used to name all CSS classes associated with the DOM structure of a component. In addition, each kind of components is assigned with a unique zclass, and shipped with all the required CSS rules. For example, the default names of button and textbox are <code>z-button</code> and <code>z-textbox</code>, respectively.

ZK Class is also used for changing mold of components, and can be used to separate the two same components with different theme without any conflict. For example, there is a Button component and its ZK Class is called “z-button”, when user mouse is over the button, the ZK Class of the component will be appended with “-over” by ZK client engine, then the full ZK Class will be “z-button-over” so that we can easily customize a specific component theme for special purpose.
+
The DOM structure of a component is sometimes complex. Some of the child DOM elements have to be styled with a proper CSS class (and corresponding CSS rules). These classes are all named by using ZK Class as the prefix. For example, the DOM element at left-top corner of a button is associated with a CSS class named <code>z-button-tl</code>.

 +
ZK Class is also used to name the CSS class representing different user activities, such as click, focus, mouse-over, mouse-out, and so on. For example, when a user moves his mouse over a component, an additional CSS class will be added automatically to the root DOM element of the component. The additional class is named by appending <code>-over</code> to ZK Class of the component.

There are three different ways to change the style of ZK components as follows. The figure 1 shows where the Sclass and Zclass should be located, the red box means the Sclass will be appended to the root DOM tree of the component, and the green box means the Zclass will be treated as a prefix temp.
+
For example, since ZK Class of a button is <code>z-button</code> (default), the additional CSS class will be <code>z-button-over</code>, when a user moves the mouse over it. More precisely, the CSS class associated with the root DOM element of the button will become <code>z-button z-button-over</code>. Similarly, if the button gains the focus, the CSS class will become <code>z-button z-button-focus</code>. Thus, it is easier to customize the look of a component for particular scenario, such as changing the look when a button gains the focus.
 +

 +
Since ZK Class is used to name all required CSS classes, all the default CSS rules won't be applied if zclass is assigned with a different name. Thus, ZK Class is generally used to distinguish different molds of components, and to provide totally different look for the same component in the same mold.
 +

 +
'''sclass'''
 +

 +
Styling Class (aka., sclass) is another way to add CSS styling to a component. By default, nothing is assigned to sclass (i.e., empty). Once it is assigned with a non-empty value (<javadoc method="setSclass(java.lang.String)">org.zkoss.zk.ui.HtmlBasedComponent</javadoc>), it will be added to the root element as additional CSS class.
 +

 +
For example, the following statement will assign the CSS class of the root DOM element with <code>zk-button foo-pretty</code>:
 +

 +
<source lang="xml">
 +
<button sclass="foo-pretty"/>
 +
</source>
 +

 +
Sclass won't change the naming of the default CSS classes, so all the default CSS rules will be applied (aka., inherited). It is useful to fine-tune a particular component.
 +

 +
'''Customization'''
 +

 +
In summary, there are three different ways to change the style of ZK components:
 +

 +
# Change sclass (<javadoc method="setSclass(java.lang.String)">org.zkoss.zk.ui.HtmlBasedComponent</javadoc>)
 +
#:Since zclass is not changed, the original look (i.e., CSS rules) will be applied too. It is useful to fine-tune a particular component
 +
# Change zclass (<javadoc method="setZclass(java.lang.String)">org.zkoss.zk.ui.HtmlBaseComponent</javadoc>)
 +
#:Since zclass is changed, all child DOM elements will be associated with a different class. Thus, it won't inherit any of the original look, but it is useful if you'd like to design a complete different look
 +
# Overwrite CSS rules (for the predefined CSS name)
 +
#:You don't need to change sclass or zclass, if you'd like to change the look for every instance of the component. Rather, you just override the corresponding CSS rules (for the predefined CSS name, such as <code>z-button-tl</code>).
 +

 +
The relationship of sclass and zclass is shown below. The sclass, the red box below, will be added to the CSS class of the root DOM element of the component, while the zclass, the green box below, will be used as a prefix for the naming the CSS class of the child DOM elements.
 +

 +
[[File:concepts4.jpg]]


{{ZKStyleGuideHeadingToc

{{ZKStyleGuideHeadingToc

Latest revision as of 13:25, 19 January 2022

ZK Class Concept



zclass

ZK Class (aka., zclass) is a naming pattern. The name assigned to zclass (HtmlBaseComponent.setZclass(String)) will be used to name all CSS classes associated with the DOM structure of a component. In addition, each kind of components is assigned with a unique zclass, and shipped with all the required CSS rules. For example, the default names of button and textbox are z-button and z-textbox, respectively.

The DOM structure of a component is sometimes complex. Some of the child DOM elements have to be styled with a proper CSS class (and corresponding CSS rules). These classes are all named by using ZK Class as the prefix. For example, the DOM element at left-top corner of a button is associated with a CSS class named z-button-tl.

ZK Class is also used to name the CSS class representing different user activities, such as click, focus, mouse-over, mouse-out, and so on. For example, when a user moves his mouse over a component, an additional CSS class will be added automatically to the root DOM element of the component. The additional class is named by appending -over to ZK Class of the component.

For example, since ZK Class of a button is z-button (default), the additional CSS class will be z-button-over, when a user moves the mouse over it. More precisely, the CSS class associated with the root DOM element of the button will become z-button z-button-over. Similarly, if the button gains the focus, the CSS class will become z-button z-button-focus. Thus, it is easier to customize the look of a component for particular scenario, such as changing the look when a button gains the focus.

Since ZK Class is used to name all required CSS classes, all the default CSS rules won't be applied if zclass is assigned with a different name. Thus, ZK Class is generally used to distinguish different molds of components, and to provide totally different look for the same component in the same mold.

sclass

Styling Class (aka., sclass) is another way to add CSS styling to a component. By default, nothing is assigned to sclass (i.e., empty). Once it is assigned with a non-empty value (HtmlBasedComponent.setSclass(String)), it will be added to the root element as additional CSS class.

For example, the following statement will assign the CSS class of the root DOM element with zk-button foo-pretty:

<button sclass="foo-pretty"/>

Sclass won't change the naming of the default CSS classes, so all the default CSS rules will be applied (aka., inherited). It is useful to fine-tune a particular component.

Customization

In summary, there are three different ways to change the style of ZK components:

  1. Change sclass (HtmlBasedComponent.setSclass(String))
    Since zclass is not changed, the original look (i.e., CSS rules) will be applied too. It is useful to fine-tune a particular component
  2. Change zclass (HtmlBaseComponent.setZclass(String))
    Since zclass is changed, all child DOM elements will be associated with a different class. Thus, it won't inherit any of the original look, but it is useful if you'd like to design a complete different look
  3. Overwrite CSS rules (for the predefined CSS name)
    You don't need to change sclass or zclass, if you'd like to change the look for every instance of the component. Rather, you just override the corresponding CSS rules (for the predefined CSS name, such as z-button-tl).

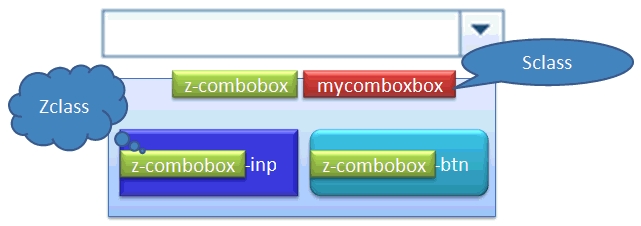

The relationship of sclass and zclass is shown below. The sclass, the red box below, will be added to the CSS class of the root DOM element of the component, while the zclass, the green box below, will be used as a prefix for the naming the CSS class of the child DOM elements.
