Author
Hawk Chen, Manager, Potix Corporation

Date
Feb. 27, 2024

Version
ZK 10.0.0

Introduction

Welcome ZK 10 - faster, lighter, and cloud-ready. With a strong focus on improving performance and user experience and optimizing cloud-native scalability, ZK 10 introduces stateless components, client-side Model-View-ViewModel (MVVM), and embraces TypeScript. Our CI/CD process now incorporates an improved security framework aimed at enhancing the protection of ZK apps against potential threats. These enhancements empower developers to better utilize client-side capabilities for building secured modern web applications.

Stateless components revolutionize ZK application development by eliminating server-side states. This shift enables auto-scaling, resource efficiency, and simplified cloud deployment. With stateless components, ZK apps can be deployed across regions, scaling elastically to meet varying workloads while delivering faster response times. Client-side MVVM ushers in a new era of data binding, reducing server memory usage and improving performance. Developers can seamlessly turn their pages into client-side MVVM with the help of the ZK Linter, which identifies compatibility issues in server MVVM code before upgrading. Additionally, the adoption of TypeScript brings reliability and robustness to ZK's front end, enhancing the development experience.

In summary, ZK 10's innovations mark a significant leap forward in web application development. These features empower developers to build cloud-native, scalable, and efficient applications, making ZK an excellent choice for modern web applications.

View ZK 10 Release Note.

Visit the ZK 10 Page.

Download

Highlighted Features

Stateless Components Enables Cloud-Native Apps

Available for ZK:

ZK 10 introduces brand-new stateless components called I-Components, allowing developers to build cloud-native, scalable ZK apps. Stateless components compose UI in a stateless manner with no server-side state. This enables auto-scaling, improves resource efficiency, and simplifies deployment on modern cloud platforms.

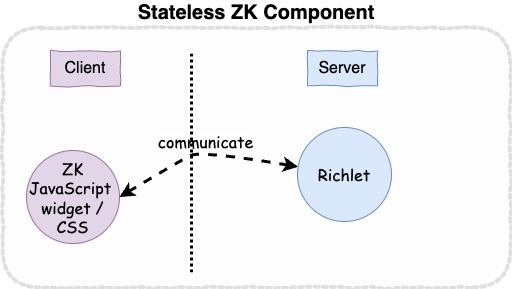

Structural Innovation

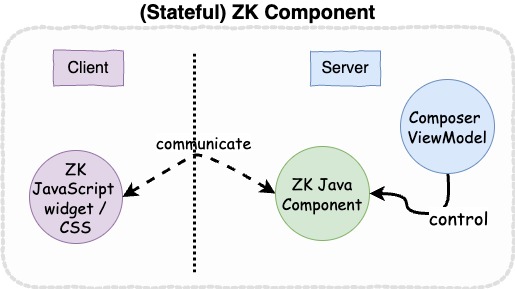

Each classic(stateful) ZK component consists of both a server-side Java object and a client-side JavaScript widget. The Java component maintains the state and syncs changes to its corresponding client widget. On the other hand, the new stateless components don't have the server-side Java object. They only generate the client-side widget. Without a Java object, stateless components do not maintain the state across requests. ZK creates immutable Java objects that only exist during each request/response cycle.

To leverage Stateless Components, you will need to use a different set of APIs:

You can build a stateless UI with both Java and ZUL. In Java, you need the IComponent fluent API. In zul, you need to pass it to Immutables.createComponents()
Since there are no server objects, developers listen to events and access UI states by receiving states from the client side by Java annotation.

For more information, read basic setup and usage.

By eliminating server-side states, stateless components make it easy to develop ZK apps that leverage the full power of cloud infrastructure. The apps can be deployed across regions and scale elastically based on load. With stateless components, ZK apps gain benefits like:

Auto-scaling based on demand
Improved resource utilization efficiency
Fast elastic scaling up and down
Service-oriented architecture and modular development
Reduced memory usage on a server
Faster response times

Visit ZK 10 Product Page for more information. Note that this new feature is an addition to the current ZK; if you are not ready to use stateless components, you can still upgrade your existing project to ZK 10 and enjoy other improvements and fixes.

Client-side MVVM

Available for ZK:

ZK (server) MVVM has been a beloved feature since ZK 6 as it automatically binds the View and ViewModel for you. Now, ZK 10 takes a step further and brings data binding to the browser with client-side MVVM support. This significantly reduces server memory usage and improves performance by handling the bindings on the client side rather than the server. Migrating an existing MVVM app is easy - just toggle a configuration flag and client MVVM is activated. You can choose to migrate the whole application or a specific part on a page to client MVVM.

Benefits of client-side MVVM include:

Reduces memory usage on a server
Improves response times
Powerful data binding handled on the client side

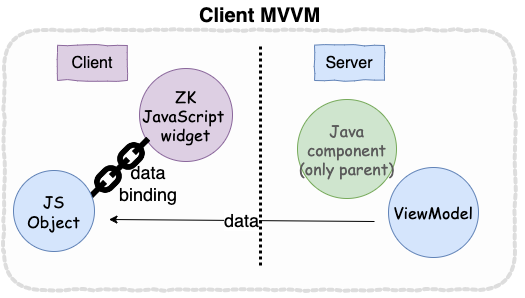

How Client MVVM Works

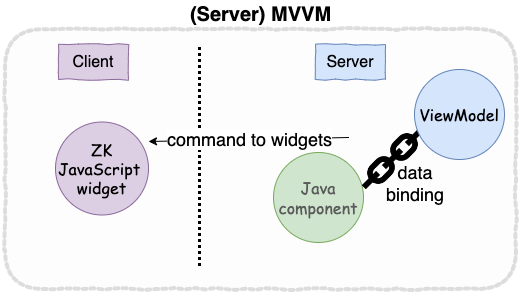

In ZK(server) MVVM, the server-side binding wires UI components to view model data. It tracks component bindings in the server memory to sync states. In the Client MVVM, these bindings happen entirely in a browser. When an end-user visits a zul, ZK creates the root component and generates JavaScript widgets only for its child components. If a component contains lots of child components like a listbox or a grid, this behavior can significantly reduce the server memory consumption. ZK exposes the whole ViewModel as a JSON object to the browser and performs data binding between JSON and js widgets. ZK's client binding then handles syncing UI widgets' states with properties exposed by the ViewModel.

When a user interaction changes a widget's state, the client binding propagates the change to the ViewModel. When a ViewModel property changes at the server, zk propagates the data as JSON objects for client binding to update the related UI widgets.

For more technical information on ZK Client MVVM, visit:

ZK Linter Enables Smooth Migration from Server to Client MVVM

Available for ZK:

Upgrading from server MVVM to client MVVM is recommended to enjoy benefits like reduced memory usage and faster performance. However, not all server MVVM syntax can be transparently upgraded to client MVVM due to the difference between the server-side and client-side processing. Some patterns like type casting and contextual parameters require tweaks to work properly with client MVVM's client-side data binding.

To help developers smoothly transition to client MVVM, ZK provides a tool called ZK Client MVVM Linter. This static analysis tool identifies potential compatibility issues in server MVVM code before upgrading.

The ZK linter analyzes Zul and Java files using a predefined set of rules covering common scenarios like:

ContextParams that are not supported by client MVVM
Unsupported binding parameter types
Type casting that may cause issues

With the ZK Client MVVM Linter, you can easily assess any upgrade issue and leverage the benefits of client MVVM with minimal effort.

For more information about using the linter tool, please refer to this blog.

Note: while it is suggested to upgrade from ZK(server) MVVM to Client MVVM to enjoy boosted performance, if you are not ready, you can still upgrade your existing project to ZK 10 to take advantage of other new features and fixes.

TypeScript adoption brings robustness and reliability

Available for ZK:

Since ZK 10, we have migrated all the client-side JavaScript code to TypeScript, a statically typed superset of JavaScript. This brings several key benefits:

Reliable auto-completion and navigation from the IDE
Catch errors early through static type-checking
Enforce project conventions with custom lint rules
Safer interoperability between modules
Closer to Java programming experience

An NPM package, zk-types, with type definitions for the ZK JavaScript APIs, is also provided. This allows using TypeScript to customize ZK in a type-safe manner.

This transition is backward compatible -- if you have been customizing the ZK front-end with JavaScript, no worries, these customizations will continue to work. Overall, TypeScript adoption makes extending and customizing ZK's frontend much more reliable and robust. For more information, visit this blog.

Enhancements

Security Enhancements

Enhanced Security Framework

Available for ZK:

In addition to the rich array of new features, we introduced an enhanced security framework to fortify our software against potential threats - integrating three powerful security checks into our CI/CD process.

Synk scanning diligently analyzes both source code and third-party dependencies, ensuring that our software remains resilient against known security vulnerabilities.
CodeQL PR scanning, powered by GitHub's cutting-edge security analysis engine, rigorously assesses pull requests for Java, JavaScript, and Typescript code within our codebase, providing an added layer of protection against potential risks.
Our integration of SonarCube scanning offers a comprehensive evaluation of source code across our projects, detecting and addressing bugs, vulnerabilities, code smells, and security vulnerabilities in source code.

With these proactive security measures in place, we're dedicated to providing you with a secure and reliable framework, empowering you to build with confidence.

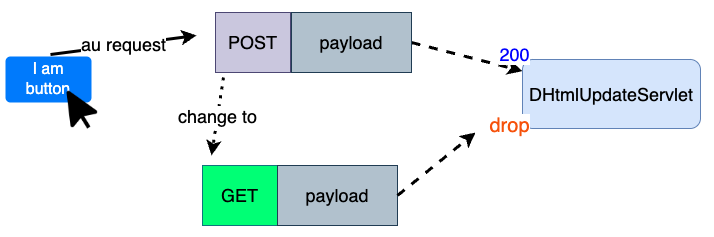

Stricter GET/POST Handling Prevents Attacks

Available for ZK:

ZK 10 enhances security by handling GET and POST requests more strictly. Previously, ZK's DHtmlUpdateServlet handled both request types in the same way. Now, ZK will respond with 404 if an AU update is sent via GET instead of POST.

This defends against HTTP verb tampering attacks. By differentiating GET and POST handling, ZK ensures the appropriate logic executes for each request type and eliminates a potential attack vector. Although ZK's architecture already prevents the forgery of AU requests, this change adds extra safety and responds to our commitment to a secure-by-design architecture.

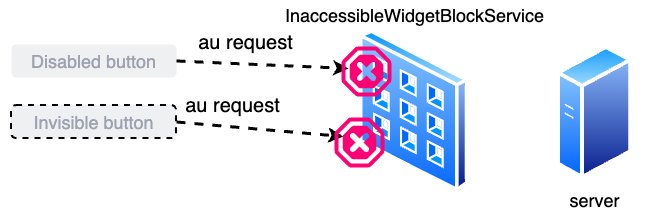

Enable InaccessibleWidgetBlockService by default

Available for ZK:

The InaccessibleWidgetBlockService is now enabled by default to enhance security. Previous versions require developers to enable it manually.

With this change, ZK applications will block requests from inaccessible widgets without any extra configuration needed. This prevents issues like users making disabled buttons clickable.

The default blocking rules are:

Block all events from disabled and invisible components
Block onChange, onSelect, etc for read-only components
Allow onOpen events

You can customize the blocked events and rules if needed. For details, please see Block Request for Inaccessible Widgets.

Upgade 3rd party dependencies

Upgraded the following optional dependencies to eliminate vulnerabilities:

Optional Dependency	Version
closure-compiler	v20230802
groovy	5.0.0-alpha-1
gson	2.10.1
jackson-databind	2.15.2
rhino	1.7.14

Integrate Font Awesome 6 offering Over 2,000 Free Icons

Available for ZK:

ZK 10 upgrades the built-in Font Awesome icon library from 4.7.0 to 6.4.2. This update provides a comprehensive set of free icons and features:

Over 2,000 free icons (mostly in solid style)
Redesigned icons with a modern look
Supports Font Awesome 6 and 4 syntax for backward compatibility

To use an icon, simply specify the CSS class name at the component's iconSclass, e.g.:

<button iconSclass="z-icon-house z-icon-solid"/>

No need to include any files or apply extra CSS. All icons are built-in and optimized for ZK. However, if you upgrade from a previous version, you will need to use the new names referencing Fontawesome's documentation; for example, z-icon-home is the name in version 4.7, but z-icon-house is the corresponding new home icon in 6.4.2.

This upgrade keeps ZK apps up-to-date with the latest Font Awesome icons and styles. You can leverage new icons and designs quickly with the familiar easy-to-use syntax.

Web Accessibility Enhancements

We recently conducted a new set of accessibility tests against the latest Lighthouse tool and implemented several improvements to ARIA roles and attributes, aria-checked attributes, and accessible names.

Other Changes

Remove outdated Applet, Flash, and FusionChart components since ZK 10
Add all new HTML5 tags in ZK 10 ZHTML
Support loading locale-dependent resources in a relative path
org.zkoss.zk.ui.uuidRecycle.disabled existed for an IE6 compatibility issue; it is now deprecated as IE6 is no longer relevant

Important Upgrade Notes

Java 11 Required

The binary-compatible level of ZK 10 is Java 11. Please make sure to use Java 11/Jakarta 11 or a higher version.

Supported Browsers

ZK 10 supports modern browsers; IE 11 (and lower IE versions) are no longer supported.

Adopt TypeScript

Starting from ZK 10, Typescript has been employed instead of JavaScript on the client side. We've designed it to be as compatible as possible, and in most cases, the upgrade is transparent for developers; however, there may still be instances where a custom ZK JavaScript widget requires updating.

Upgrade tool: ZK Linter

We cleaned up many deprecated APIs in ZK 10; You can use the Java compiler to help you locate removed APIs in your Java files and use ZK Linter to check the removed attributes in your zul files.

We prepared a set of Linter rules that help to check against these removed zul attributes and simplify your upgrade process. Follow zklinter starter project to set up zk linter and scan your zul files. Make sure you include zk 10 upgrade rule in app.properties:

app.properties

customRules=org.zkoss.zklinter.impl.rule.*

If it finds an incompatibility, it will show a warning like:

INFO: /yourpath/yourpage.zul
WARNING:    6:  6	The attribute, type, in <script> is no longer supported since ZK 10. Deprecated since 5.0.0, text/javascript is always assumed, please remove it.

Follow the hints to remove or replace the unsupported attribute.

Use zklinter in Maven Project

ZK Linter is a gradle project. If you are using maven, follow the instructions below:

1. Include the zklinter jar:

        <dependency>
            <groupId>org.zkoss.zk</groupId>
            <artifactId>zklinter</artifactId>
            <version>10.0.0-Eval</version>
        </dependency>

2. add app.properties

3. Make it run with exec-maven-plugin:

            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>exec-maven-plugin</artifactId>
                <version>3.1.1</version>
                <executions>
                    <execution>
                        <id>zklinter</id>
                        <phase>process-resources</phase>
                        <goals>
                            <goal>java</goal>
                        </goals>
                        <configuration>
                            <mainClass>org.zkoss.zklinter.App</mainClass>
                        </configuration>
                    </execution>
                </executions>
            </plugin>

Then run maven goal mvn process-resources to start scanning

Removed API

Most of the APIs removed have been deprecated for a long time. See Removed API for the complete list.

Unsupported Themes: Breeze, Sapphire, Silvertail, and Atlantic

Breeze, Sapphire, Silvertail, and Atlantic are deprecated and no longer supported since ZK 10. If you use one of these themes, we suggest you adopt a compact theme like iceblue_c when upgrading to ZK 10. Because iceblue_c is a compact theme that has similar font size, paddings, and margins as those deprecated themes. See How to Switch Themes for details. Use ZK Theme Template if you wish to further customize the theme.

Check theme demo for iceblue compact.

Removed zkplus-legacy module

ZK's first databinding mechanism (Annotate Data Binder) was introduced in ZK 3, and deprecated in ZK 7. In prior releases, the Annotate data binder feature was moved to a separate package (zkplus-legacy), to help identify its deprecated status.

In ZK 10, the Annotate Data Binder is no longer supported, and zkplus-legacy is no longer available. If you need to upgrade a ZK application using Annotate Data Binder, we recommend rewriting the relevant pages to use the modern ZK MVVM databinding instead. Please refer to ZK MVVM Reference.

Add-on Compatibility

The following add-ons have been updated to support ZK 10.

Add-on	ZK-10 Compatible Releases	Notes
ZK Pivottable	3.0.0 or later	3.0.0 is for ZK 10 only. For ZK 9, please use 2.5.3
Keikai Spreadsheet	6.0.0 or later	6.0.0 is for ZK 10 only. For ZK 9, please use Keikai 5
ZK SpringBoot Starter	3.2.3 or later	3.2.3 contains auto-config for client mvvm and stateless components
ZATS	10.0.0 or later	ZATS 10 is for ZK 10 only. For ZK 9, please use ZATS 3.0 or 4.0

Other add-ons, such as ZK Charts, ZK CKEditor, ZK Spring, ZK Calendar, and ZK Gmaps are not affected.

Summary

ZK 10 brings significant enhancements, including stateless components, client-side Model-View-ViewModel (MVVM), TypeScript support, and enhanced security. We trust that you will find these enhancements valuable and invite you to explore this release for creating fast, modern, and secured applications.
